## Procedural city growth and sprawl

How cities growth, expand, and connect each other is a topic that have been obsessing me for many years. It probably started with my first Lego and developed while playing SimCity or Transport Tycoon some years later. This obsession became official when I started to study them as a physicist and worked on it as topic of research (after quantum mechanics).

This is the model based on Carlos Molinero's work for city sprawl. We are interested in the simplest mechanisms able to reproduce two basic empirical observations:

- Proportional growth, also known as Gibrat's Law (the change in time for the population is proportional to the own population)
- Zipf's Law (the rank distribution of populations follows a power law with exponent -1)

The model has two parameters: a **correlation distance** and a **population density threshold**. We follow the next steps:

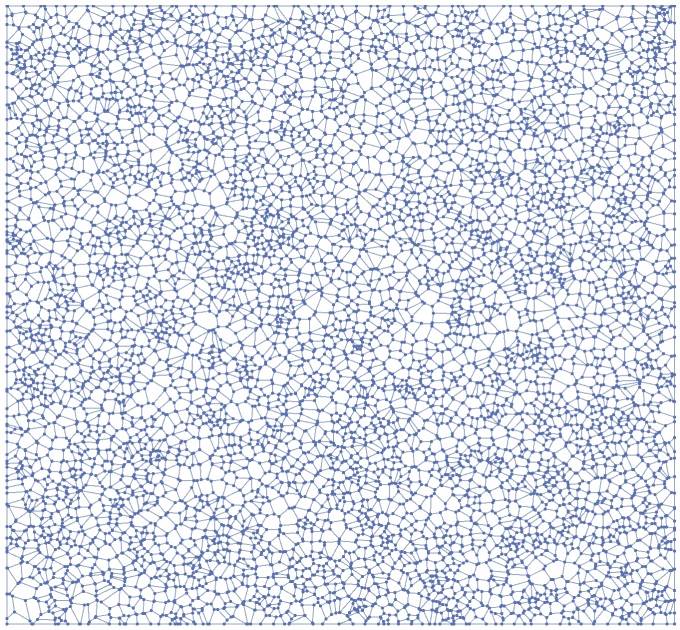

1. Our board is a Voronoi graph generated from a random distribution of points in the surface. Urbanized area will be located at the vertices, roads will follow the edges of the graph.

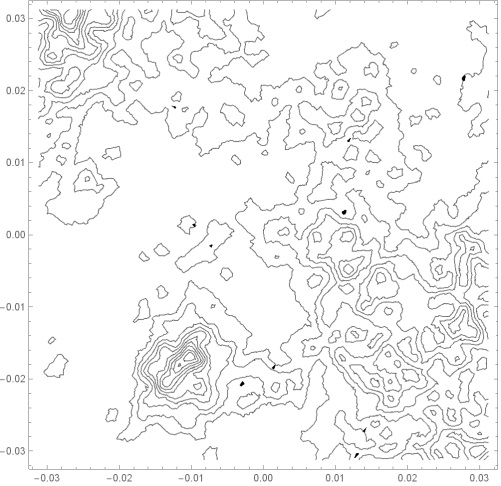

2. We use a type of Perlin Noise to generate mountains and lakes (water can no be urbanized indeed).

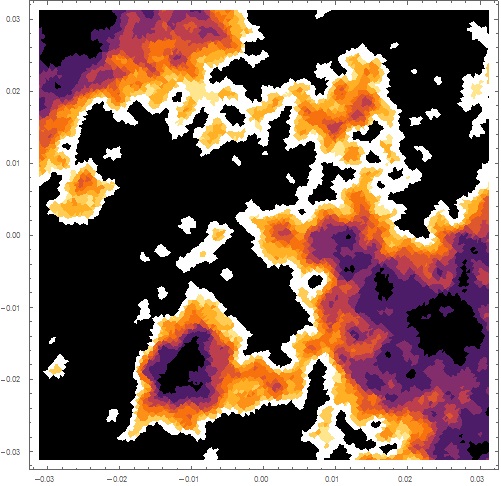

3. We define a probability of urbanization according to the geography:

- zero for water (in black)
- Highest probability at sea level (in white), exponential decay with elevation.
- Highest probability close to the sea and water, exponential decay with distance (relevant if there are rivers).

Other factors can be include, as other type of resources (as for mining towns), landforms that help for defending the city (as those with historical centers in bays or elevations), or too dense vegetation (as the Amazon rainforest). Anything is possible!

4. We use that probability for selecting some seed points, assigning a population of 1 (or any minimal number, as Dunbar's for instance). In this example we select 10 vertices to be the seeds. The growth and sprawl process follows:

4. 1. A vertex is selected randomly using population as probability distribution (Gibrat's Law).

4. 2. We **don't** add population directly to that vertex: instead, we choose randomly another vertex according to the distance to the original choice. We use a Cauchy distribution (or Lorentzian function) centered at this vertex and scale parameter that of the predefined correlation distance (for this example we give the value 0.0001).

4. 3. We add +1 (or any other minimal value) to the population of this vertex, if and only if it has not reach already the predefined saturation threshold (10 in our example). If this is the case, we add the population to any of its neighbors (cascade effect).

5. We repeat the process for many iterations until being happy of the result. There is no empirical evidence of existing a limit to the size for a city, thus the process never ends.

The effect of resources and transportation networks can be also included modifying the probability for selecting a vertex. We can also include **negative values** for population growth to reflect migrations. For instance, the migration from small rural towns to urban areas can be included by selecting low density vertices and decrease their population in favor of a vertex close to a big population cluster. Again, anything is possible!

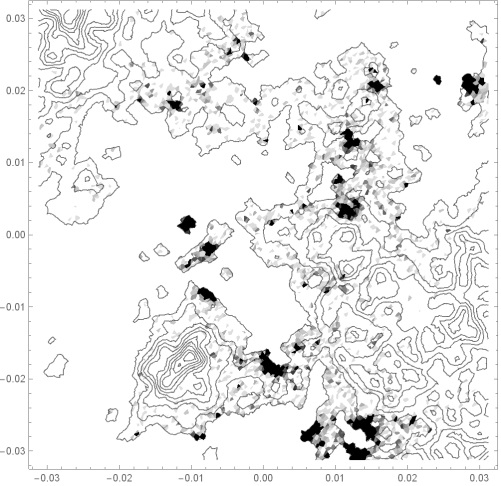

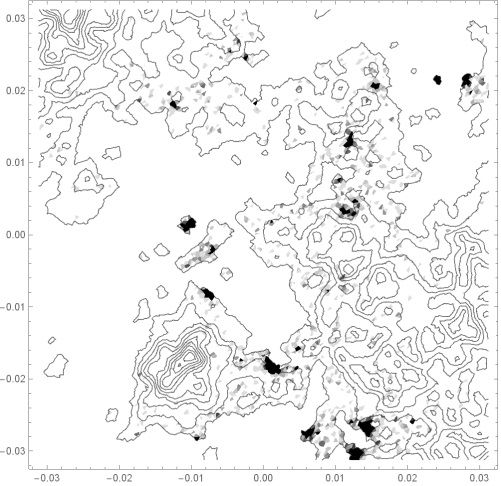

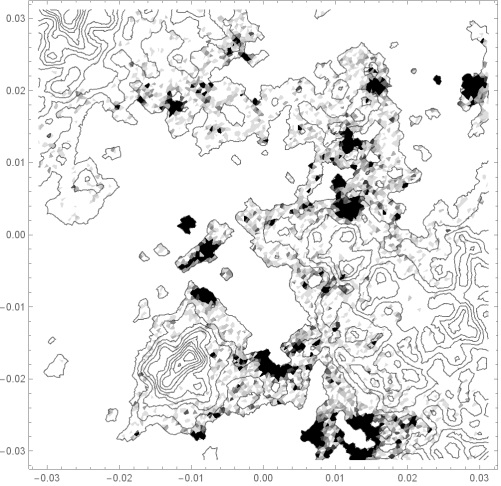

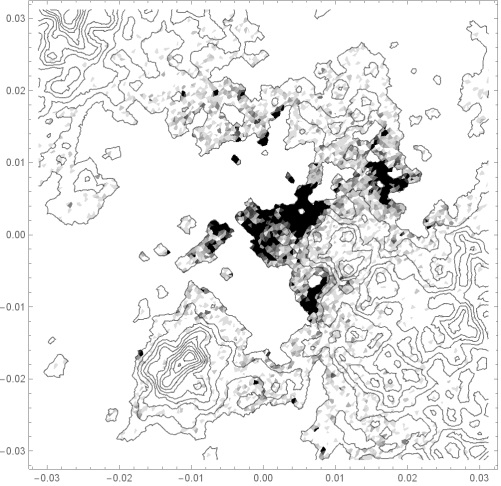

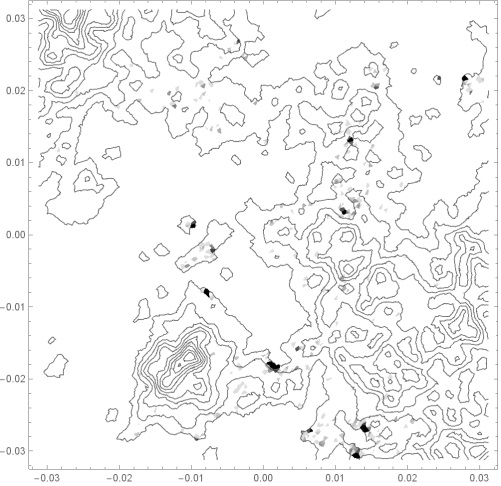

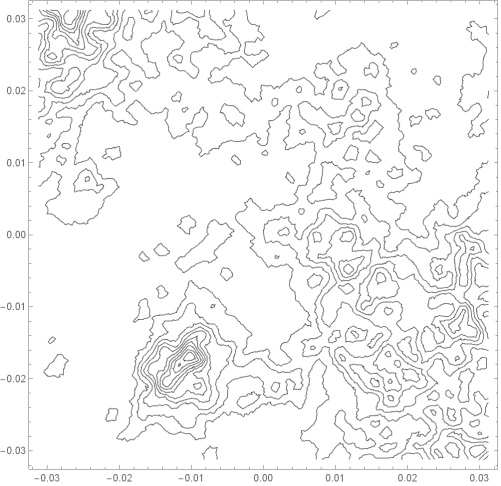

Here we have three frames of the growth sequence in our example:

Different initial seeds or values in the threshold and correlation density results into different urban configurations. However, regions close to the sea are always preferred, while high mountains are avoided for large metropolitan areas.

The model reproduces Zipf's Law for the population of cities in any of these cases: if we clusterize the vertices according to their population and continuity, and then we check the total population inside these clusters, we obtain something like this plot. Blue dots are the population of the clusters (or cities), ranked from the biggest (around 1000 of population and 1st in the ranking) to the smallest (those with just 1 unit of population in one single vertex, from the 500th rank to the last one of 800). The black line represents the expected slope for Zipf's Law, which is (under numerical noise) parallel to the dots.

Next step? to include the road network dynamically, following the model of Road Trees. Any comment is welcome! write me if you have a nice idea.
